Consumer Electronics Product design and development

Argus(AESPL) has built competencies in Retail and consumer electronics Product design and development acquiring in-depth knowledge and expertise, creating intellectual property and re-usable platforms. We have integrated the hardware, software, and system design services to provide our customers with valuable solutions for consumer electronics. Argus Systems believes in "First time, Right solution" and with experienced technical resources, we can be your complete electronic product design partner.

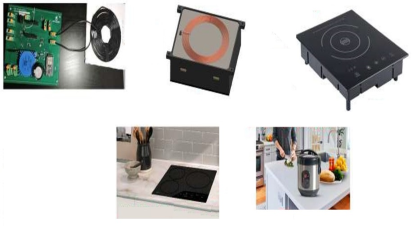

Hybrid Wireless Power Transfer (HWPT) solutions

  • Inductively coupled Hybrid wireless power system & technology for High Power, short range wireless power transfer applications
  • Controls the amount of power transfer using SMART frequency modulation of electromagnetic waves
  • Loosely coupled system: Resonance & higher coupling factor to increase power transfer capability and efficiency
  • Dual functionality in transmitter (inductive heating mode + Wireless power transfer to receiver module ).
  • Transmitter is Installed Under Kitchen countertop while Receiver Installed in Appliances.
Hybrid Wireless Power Transfer

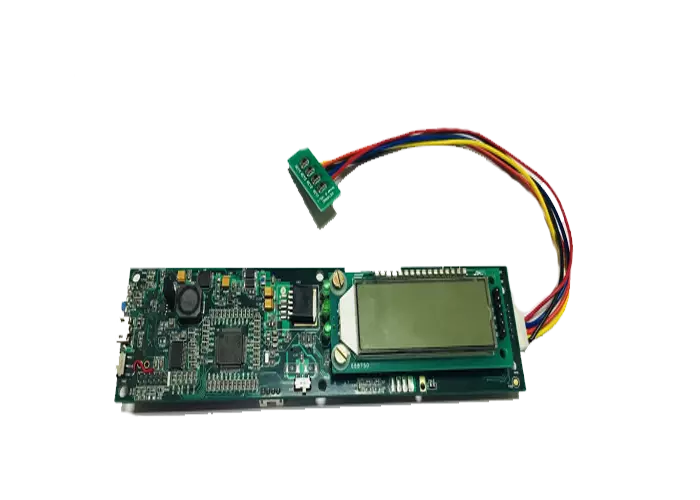

Bluetooth BT Weighing Scale

Argus Systems has designed & developed Bluetooth BT weighing scales. The Android app and the hardware can be customized to suit the end-user requirement.


  • Weight of Terminal: self-weight lower than 500 g
  • Battery operation: > 3.8v Chargeable Lithium-ion.
  • Display: RGB LCD backlit 6 digits / 2 line display
  • Weighing resolution: 6000 and above (Class III)
  • Capacity & readability to be selectable through password/service mode
  • Tare: 100% of capacity set
  • Over-weight cut off: 9e ( 9 times of the readability)
  • Auto Zero: 3 to 5 level setting of Automatic correction of zero shifting
  • Stability Function: Stability symbol is displayed when the weight is stable inside a defined range
  • Display Stabilisation time less than 1 sec
  • Calibration: Digital Input/memory to save calibration data for future recall
  • Statutory requirement: Class III and above, OIML compliances
  • Communication and auto-syncing through Bluetooth
  • Mobile app to automatically recognizes various weighing points / USERS.
  • Rated Load 0-30 Kg
  • Nominal Output 2.0,0.1 mV/V (milli Volt per Volt)
  • Precision C2 / C3 (0.017% & 0.02% FSO comprehensive error)
  • Excitation Voltage 9 VDC - Maximum 12 VDC
  • Platter Size 250mm x 350mm
  • Safe Load 120% of Rated Capacity
  • Ultimate Load 150% of Rated Capacity
  • Non-Linearity <0.03% of FSO (Full-Scale Output)
  • Creep (30 minutes) <0.025% of FSO
  • Zero Balance <1% of FSO
  • Input Resistance 400 10 ohms
  • Output Resistance 350 5 ohms
  • Insulation resistance Above 5000 Mega ohms.
  • Temp. Compensation -10oC to +40oC
  • Temp. Effect on zero & span < 0.03% FSO/10oC
  • Material Aluminium alloy, Colourless anodized

    Android APP Features:

  • User login & Registration
  • Add lot detail
  • Add commodity details
Bluetooth BT Weighing Scale

Cloud Video Surveillance System

The surveillance device stores motion data and time series data on the cloud. There is unlimited Cloud storage available for each account this data is kept secure for 360 days after which it can be backed up or destroyed. This data is pre-processed both at the device level and on the cloud to get actionable intelligence from it.


  • Versatile Surveillance System with Proactive Protection.
  • Detect Events Across Multiple Cameras.
  • Flexible Alarm And Alert Configuration.
  • Centralize Management with easy Access From Any Device.
  • Manage Hundreds Of Devices.
  • Smart History Organisation allows easy Audit Of The Surveillance Data.
  • Share Motion And Video Feed.
  • Face Detection And Recognition.
  • Number Plate Recognition.
  • Programmable Camera API.
  • Smart Searches Across Camera.
Cloud Video Surveillance System

GSM GPRS Weighing Scale

Argus Systems has designed & developed GSM GPRS weighing scales, it can work with 2G/3G/4G module as per the requirement & regulation from a different country. These applications include the use of mobile devices in collecting community and clinical health data, delivery of healthcare information to practitioners, researchers, and patients, real-time monitoring of patient vital signs, and direct provision of care (via mobile telemedicine).

This project operates with a variety of objectives, including access to healthcare and health-related information (particularly for hard-to-reach populations); improved ability to diagnose and expanded access to ongoing medical education and training for health workers.The main application is the use of mobile devices in Real-time monitoring of patients and tracking the prescribed medicine course has been followed or not.

  • Controller: PIC24FJ128GC006
  • MEMORY: 128kb Flash Memory,8MB EEPROM
  • Communication: UART
  • ADC • 2 channels,16bit sigma-delta ADC • Programmable amplifier(32 times)
  • GSM Module • SIM 900 • AT command based communication
  • Load Sensor: Single point load cell 600gms, Sensitivity-1gm
  • Other Interfaces: Buzzer, LED indications
  • PIC 24 is used for internal operation.
  • GSM module SIM 900 is used for mobile communication(Frequency ranges 850MHz to 1950MHz)
  • Load cell sensor is used for weight sensing
GSM GPRS Weighing Scale

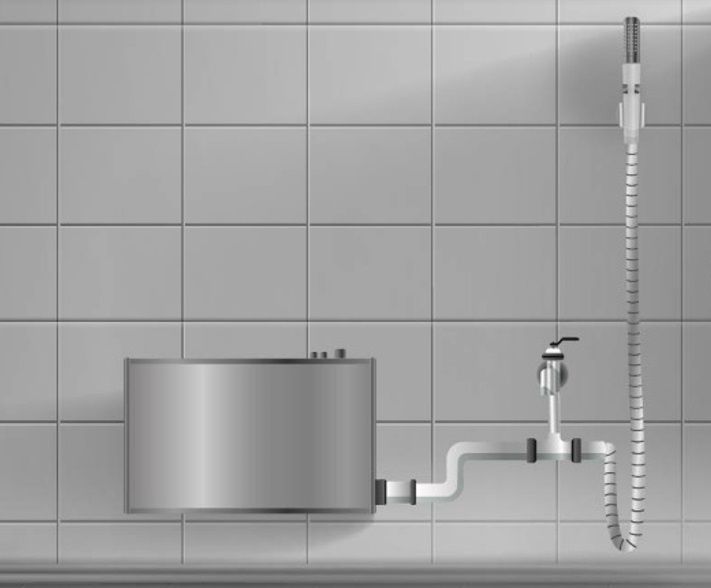

Water Jet Sprayer With Air Dryer for Personal Hygiene

  • Jet sprayer with slider button for water jet and air
  • Temperature controlled air blower
  • Blower speed control
  • Blower auto cutoff with pre-programmed timer
  • Air temperature control with auto cutoff threshold
  • Miniature air compressor
  • UV Light
  • Fragrance diffuser
Water Jet Sprayer
Consumer Electronics Product Design & development

Reach Argus Application Engineering team to discuss Requirement for consumer electronics product design and development.

Argus Systems (AESPL) is a global Electronic Engineering and manufacturing company with Its Operations in India, USA, UK, Australia offering consumer electronic systems and solutions for POS Weighing Scale, Wireless Weighing scale (GSM, Bluetooth, wifi ) and Cloud Video Surveillance System.
