Aerospace and Defense Solutions

Aerospace and Defense Electronics, Avionics Software

Aerospace and Defense Solutions - Aerospace And Defense Electronics, Avionics Software

Argus Systems (AESPL) has built competencies in the aerospace and defense solutions acquiring in-depth knowledge and expertise, creating intellectual property, re-usable platforms, and solutions for aerospace and defense electronics, Avionics software meeting AS9100D (Scope: Manufacturer of Printed Circuit Board Assemblies, Electr, Aviomechanical Assemblies & Cable Assemblies and Box Build) quality management standard. We have integrated hardware, software, system design and Electronic manufacturing to provide our customers with valuable solutions in Aerospace and Defense Electronics and Avionics Software. Argus Systems believes in "First time Right solution" and with an experienced Product Engineering team, we can be your complete electronic product design and development partner for Aerospace and Defense Solutions.

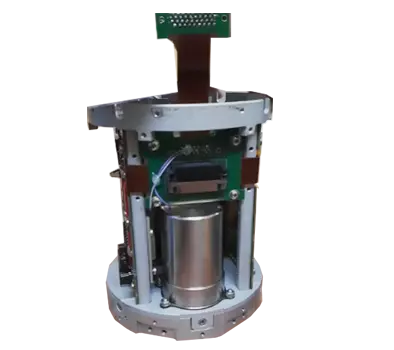

Inertial System

  • Inertial System for missile application.
  • Complete inertial system that includes triaxial gyroscope, triaxial accelerometer, triaxial magnetometer, and pressure sensors.
  • Zynq®-7000 Artix™-7 FPGA based Design with DDR3, Flash memory management.
  • Ethernet Interface.
  • Rigid Flex PCB Assembly.
Inertial System

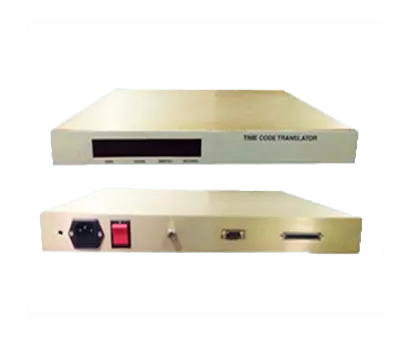

Satellite Time Code Generator

  • The satellite data received in the X band is in a Specific data format. This data has to be frame synchronized which is performed by the TCT Unit.
  • Generates time in days, hours, minutes, seconds, milliseconds, microseconds structure in a BCD format.
  • The Host System of Satellite Time Code Generator provides the start time information through RS232 Interface. The time increments will be displayed on HP display devices.
  • The Unit continuously increments from the start time provided by the Host system at an interval of 1micro second.
Time Code Generator

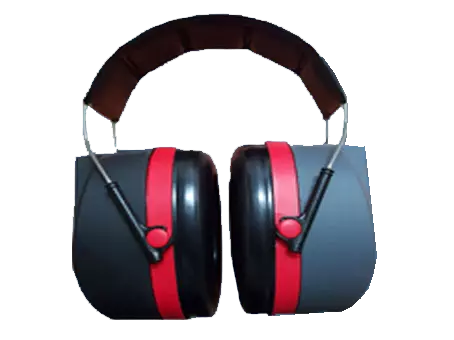

Active Noise Cancelling Earmuffs

  • Active Noise Reduction (ANR) headphone system reduces annoying low-frequency sound in a noisy environment.
  • The chip measure external ambient noise using ANC circuitry with its built-in microphone and synthesizer with a sound in the opposite phase to reduce significant background noise
  • Earcup pivot points that tilt for optimum comfort and efficiency.
  • Lightweight adjustable headband provides superior fit Full-size ear cups.
  • Active Noise cancelling earmuffs has 20Hz to 600Hz Noise Reduction Bandwidth.
  • Decibel Reduction: 15-20dB active noise attenuation at 100 to 400Hz (tonal noise).
  • Compatibility: 300-ohm impedance audio system
  • Weight: Adds approximately 3 ounces to original headset weight.
  • Power input: 9Volt DC power supply, +/- 5%
  • Power consumption: 500 mA (max.)
  • Temperature: -20 degree C to +70 degree C
Active Noise Cancelling Earmuffs

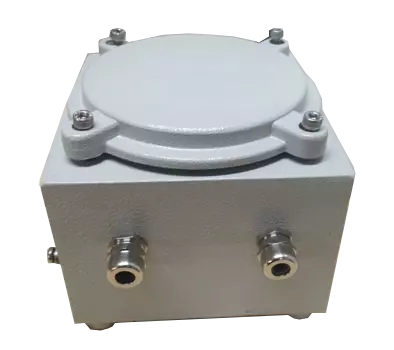

Hydrogen Detector Unit

  • Hydrogen detector Uses palladium-based hydrogen gas sensors.
  • Microcontroller
  • digital signal processing
  • signal conditioning circuit
  • ADC & DAC
  • Temperature measurement
  • UV LED
  • 24V supply
  • Explosion-proof Enclosure for hydrogen detector.
Hydrogen Detector Unit

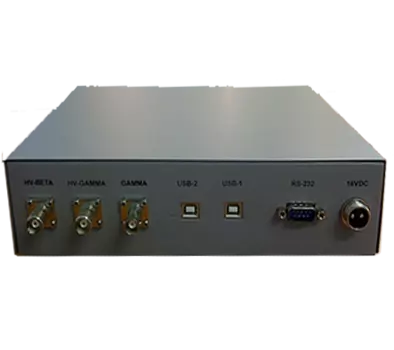

Radiometric Analysis System

  • The spectrometry system application is for Radiometric analysis of rock and soil samples and isotope identification.
  • The radium, Uranium, thorium, and potassium contents of rock samples are determined by measuring the characteristic gammas of these elements using DSP based gamma-ray spectrometry and suitable detector system (Cadmium Telluride, Germanium, Sodium Iodide).
  • Radiometric Analysis System has a user-adjustable alarm threshold to generate alerts.
Gamma Ray Spectrometry System

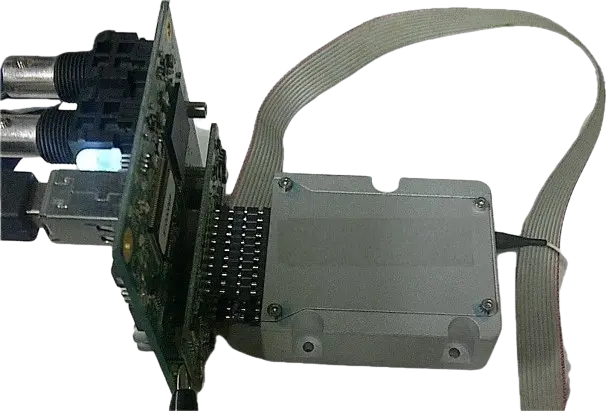

Explosive pressure measurement

  • Synthetic heterodyne demodulation technique is used to accurately detect the dynamic variation of Pressure by implementing the complex mathematical operations in FPGA based customized developmental board and processing the input signal using above.
  • Since detection process is non-linear, relatively complex techniques are applied to obtain a linear relationship between an output electrical signal and the induced phase shift.
  • The light source output is frequency modulated by modulating the laser driving current and the sent to the sensor module. During interference at fibre end light beams differs in phase due to source frequency modulation and induced phase shift due to stimuli (Pressure).
  • Explosive pressure measurement Hardware Architecture consists of ADC, DAC, DSP in FPGA.
Gamma Ray Spectrometry System

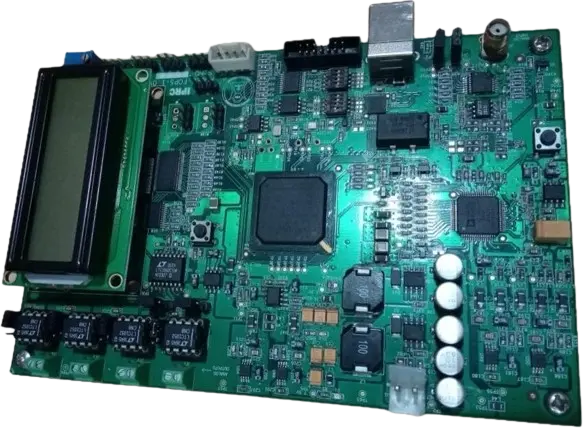

FBG Sensor Interrogator System

  • Optical sensors are illuminates by broadband source and the narrowband component reflected by the sensors (FBG) is directed to the wavelength detection system having CCD.
  • FBG Sensor Interrogator System supports 8 CCDs image sensors.
  • Agiltron 1x8 Latching Fiber optic Switch.
  • InGaAs linear image sensor.
  • Image Signal Processor.
  • Programmable SoC Processor.
  • FPGA based controller Card.
  • Onboard memory for data storage.
  • Supports protocols such as UART, USB, FLASH
Gamma Ray Spectrometry System

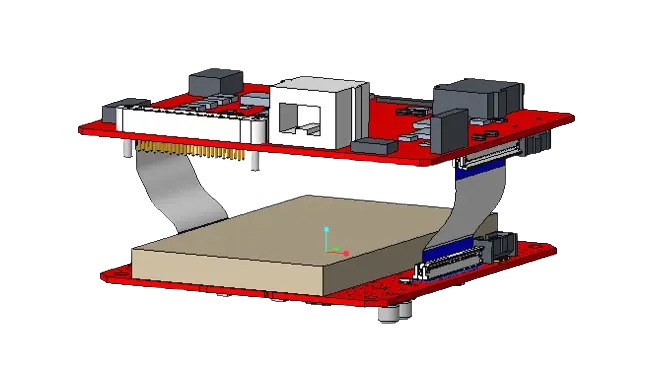

Video Processing Module

  • Video Processing card with NVIDIA Chipset for Computer Vision Applications such as real time object detection, Tracking and real time streaming of video.
  • LWIR camera for image/video capture
  • Gigabit Ethernet
  • RS485 interface for communication with other embedded systems
  • NVIDIA TM660M-A2 System on Module ( SOM)
Gamma Ray Spectrometry System
Aerospace and Defense Solutions, Avionics software

Contact Argus to discuss your development Requirement for Avionics software, Aerospace electronics, Defense electronics.

Argus Systems ( AESPL ) is a globally recognized Electronic System & sub-system Design and Electronic manufacturing company with Its Operations in India, USA, UK offering products and solutions for Aerospace Electronics, Defense electronics, Avionics software such as Inertial System, Satellite Time Code Generator, Active Noise Cancelling Earmuffs, Hydrogen Detector Unit, Radiometric Analysis System, Explosive pressure measurement and FBG Sensor Interrogator System.
