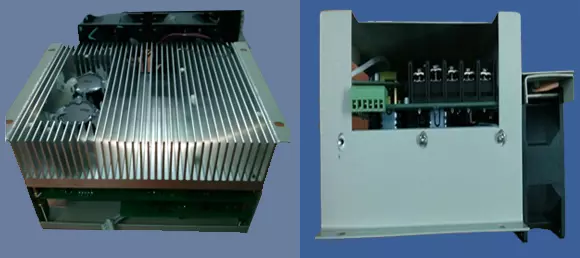

BLDC Motor Controller

BLDC Motor controller Unit gets DC to input from a solar array and controls a brushless DC ( BLDC ) motor coupled with a multistage pump to optimally use available energy and provides a maximum discharge for various conditions of current limit supporting high pump shutoff head.

• Rated dc input voltage 150 Vdc to 250 Vdc
• Rated power 2500 W ( to be used with 3000 Wp solar panel)
• maximum V/f ratio 1.5 + 5%
• Efficiency min. 92%
• BLDC motor rating 220Volts, 2500 Watts, 3000 RPM

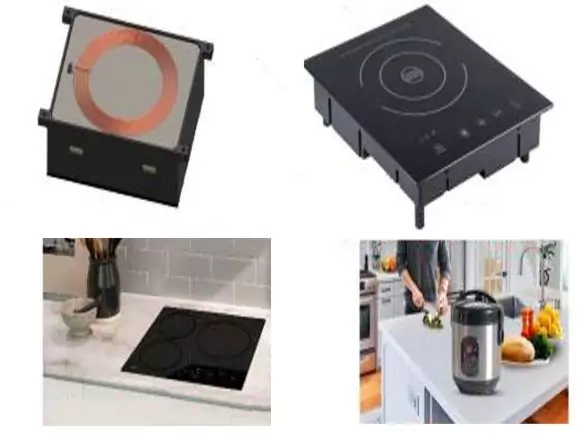

Hybrid Wireless Power Transfer (HWPT) solutions

Inductively coupled Hybrid wireless power system & technology for High Power, short-range wireless power transfer applications.

• Controls the amount of power transfer using SMART frequency modulation of electromagnetic waves,
• Loosely coupled system: Resonance & higher coupling factor to increase power transfer capability and efficiency
• Dual functionality in the transmitter (inductive heating mode + Wireless power transfer to receiver module ).
• Transmitter is Installed Under the appliances countertop while Receiver is Installed in the Appliances.

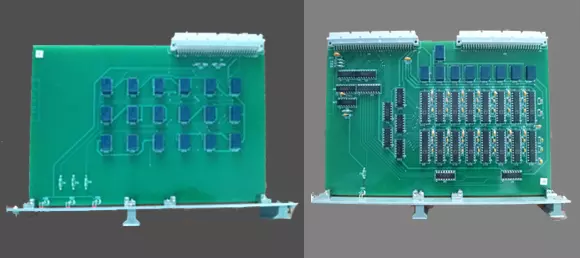

Industrial Safety System

• Command Input Unit
• Command Output Unit
• Command conversion and transmission module
• Command conversion and reception module
• Signal Conversion and transmission module
• Signal Conversion and reception module
• Coupling module
• Analog signal Input module
• Analog signal output module
• A discrete signal Input module
• A discrete signal output module
• Diagnostic Module

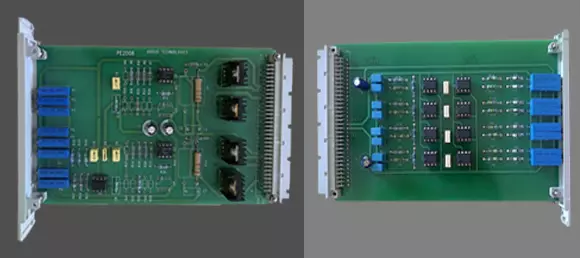

Industrial Controller Cards for Metallurgical Equipment

• Pump Controller
• Servo Feed Controller
• Ramp controller Card
• Input & Output Card
• Relay Control Card
• Self Test Card

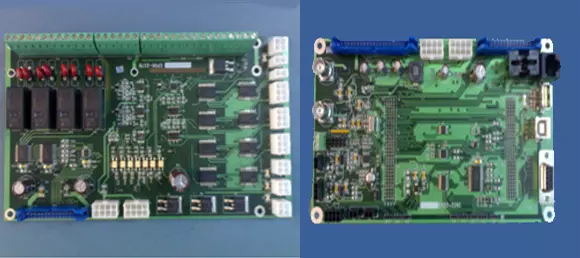

Chromatography-Mass Spectrometer

• Controller Card
• Processor Module
• Input/Output Card
• Display Card

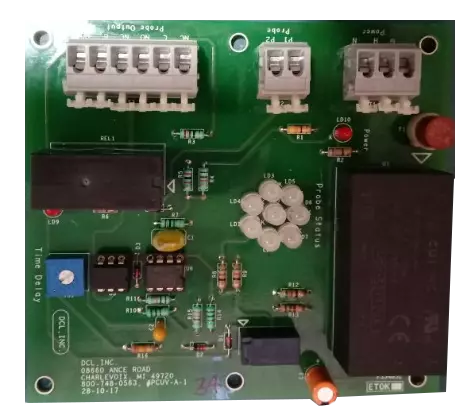

Tilt Detector Card for Bulk Loading System

• Tilt Detector card continuously monitors the Tilt of a loading arm of the bulk loading system.
• Activates an alert when the device is tilted to pre-configured Tilt Levels
• Programmable Tilt lever alert
• LED Indication
• Operates with 110-220V AC inputs

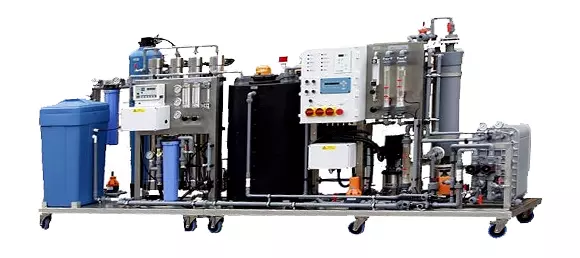

Water Purification and Dispensation Solution

• OEM Electronic cards for water vending machine with integrated RO function.
• Integrated six stage water Purification and Dispensation Solution enables implementation of a fully automated system.
• Modular architecture of Water Purification and Dispensation Solution having controller card, communication card and User Interface cards
• 4G/LTE cloud connectivity for dispensation system for its operation and maintenance
• RFID card & coin-based dispensation system
• Periodic In-built water quality testing function
• solenoid valve control
• supports UV lamp & Ozonater
• Flow sensors for dispensation taps supporting up-to 6 dispensing taps
• TDS & PH sensor water quality sensors
• Pressor Sensor for RO Reject & RO feed
• Pump control for Booster Pump, Feed pump, HP Pump

Welding Access Control & Data Logger

• Welding equipment access control with Operator Fingerprint
• Fingerprint sensor to enrol and identify the Operator while doing welding Job work
• Monitors Voltage and Current during Welding Process
• Local Display for Date,Time, Welder ID, welder Name and Supervisor
• Process parameters data are logged and sent to MQTT server using Wi-Fi,4G LTE.
• Local data logger storage in SD card

Emergency shutdown Valve (ESDV) Control Unit

Electronics Controller for emergency shutdown ( ESD ) Valve detects abnormal Pressure conditions on a production process and initiate a shutdown of valve if any of the reading shows the operation is no longer within the pre-set safety margins of pressure.

• Pressure [High Pressure & Low-Pressure sensing from 60 to 20,000 psi].
• System Battery Level sensors.
• Emergency shutdown command from SCADA/RTU system.
• The Pressure gauges indicate the actual reading and set points.
• Indicator lamps indicate the status of pressor sensors and alarms which helps the operator in instantly knowing the conditions of the process.
• A green LED shows that the system is operating without problems.
• System Normally operates with open ESD valve and closure of ESD valve indicates that an alarm is present.

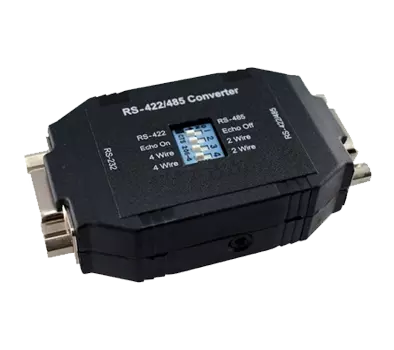

Serial Data Converters ( RS232, RS422, RS485)

Serial Data Converters are small modules that convert single-ended RS-232 signals into differential RS-422 or RS-485 signals. Signal conversion is completely bidirectional - outgoing RS-232 signals are converted to RS-422/RS-485 differential levels and incoming RS-422/RS-485 differential signals are converted into single-ended RS-232 signals.

Serial Data Converter has a DB-9 female connector on one end that mates to the DB-9 male connector found on the rear of most PCs and other serial devices. Besides its use with PCs, the Converters can be used with any 9-pin RS-232 device whose pinout matches that of a PC's COM port. Once equipped with the Converter, the PC or RS-232 device can communicate with other RS-422 or RS-485 devices.

• Convert single-ended RS-232 signals to RS-485 or RS-422 differential signals. Bidirectional data transfer with increased noise rejection.
• Extends RS-232 transmission distance to 1.2 Km. Overcomes RS-232's 50-foot cable limit.
• Adds multi-drop capability to an RS-232 signal. Drives up to 50 loads.
• Meets FCC Class A and European CE requirements. Should not interfere with other devices.
