Wireless IoT Solutions - Cellular(4G/5G), Bluetooth, BLE, WiFi, LPWAN (LTE, NB-IoT), LoRaWAN, RFID-IoT, Zigbee

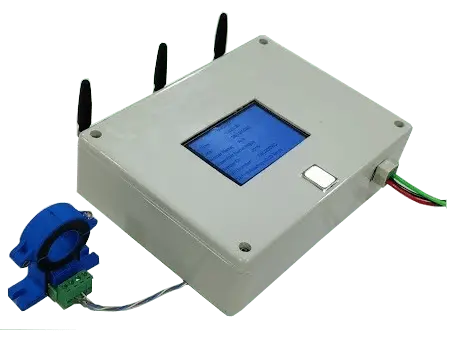

Welding Access Control & Data Logger

• Welding equipment access control with Operator Fingerprint
• Fingerprint sensor to enrol and identify the Operator while doing welding Job work
• Monitors Voltage and Current during Welding Process
• Local Display for Date,Time, Welder ID, welder Name and Supervisor
• Process parameters data are logged and sent to MQTT server using Wi-Fi,4G LTE.
• Local data logger storage in SD card

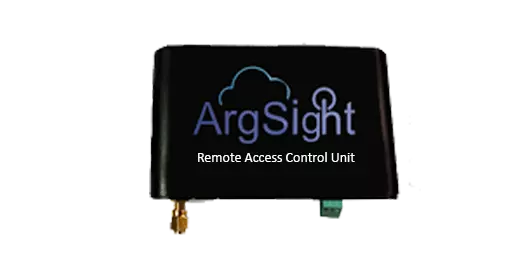

2G/3G/4G LTE Remote Control

• Power ON Device and wait for Device Setting time.
• Send the SMS message from Mobile Phone to Remote Power Switch system. For Power ON AC load,SMS Message is: RELAY_ON Send to Device SIM Card Number. Device will Acknowledge with ON For Power OFF AC load, SMS Message is: RELAY_OFF Send to Device SIM Card Number. Device will Acknowledge with OFF
• Remote Power Switching Device.
• AC mains (230v).
• AC Load i.e. Lamp.
• Mobile phone with SMS pack.

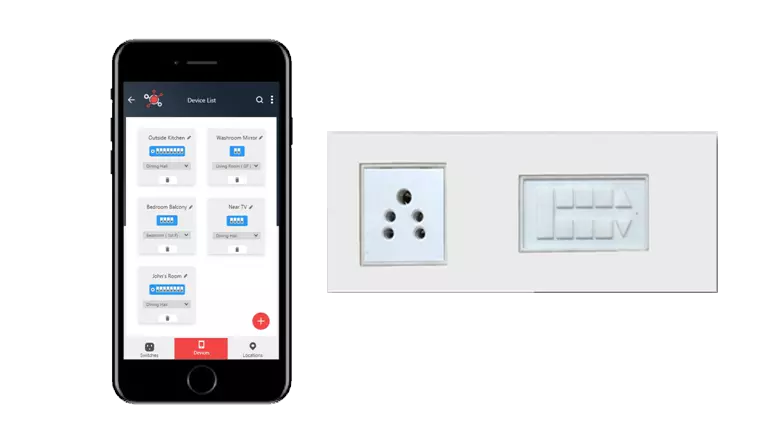

Multiport Switch Control – WiFi

• WIFI Smart Plug and Switch is installed in place of standard switch board and allows you to control switches through smart phones, tablet apps & voice assistants.
• Its unique differentiating feature includes touch panel using which switches and dimmer can be manually controlled through touch.
• The smart Plug is a Wi-Fi enabled smart device, which can easily be installed into your existing 4-8 module switchboard.
• Turn appliances and electronics on/off, and schedule the same from anywhere across the house, or from any part of the world, from the app.
• WiFI Smart Switch & Plug can also be configured to be used as a dimmer, so you can set up the perfect ambiance in your home and save energy at the same time.
• 4,6,8 port Smart switch with Plug models with load rating of 10/30Amp
• Input Voltage and Load Output range is 110/270 VAC
• Wifi Smart Switch uses Cap Sense & Latch Relay Technology (LRT) Technology

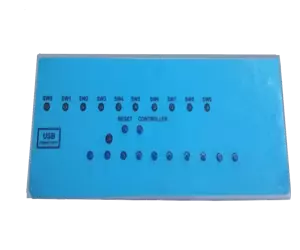

Wifi Smart Switch & Plug

Integrated with below Sensors

• WiFi Connectivity to Mobile Device
• Optional USB interface option available.
• Android & IoS Mobile application for switch Control.
• Manual keypress option available
• Micro-Controller used to drive Relays
• Equipped with high-current relay 10A@12VDC
• It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, bulbs, etc.
• LED status indicators to indicate the relay ON/OFF status.

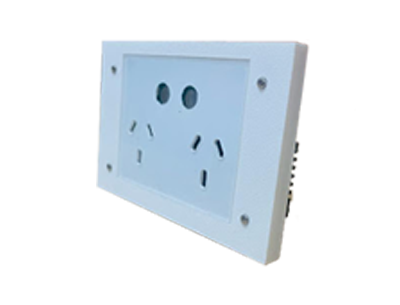

Smart Wi-Fi Outlet with Energy Monitoring

• Continuously monitors the energy parameters from plugs/outlets and sends to Remote server with MODBUS (RS485), WiFi.
• Monitored parameters: volts, amps, PF, frequency, kVA, kW, kWh, kVAH.
• 2x AU 240V, 10A power sockets.
• Each power socket switchable on/off both manually at the socket (touch) and remotely through server/mobile application.

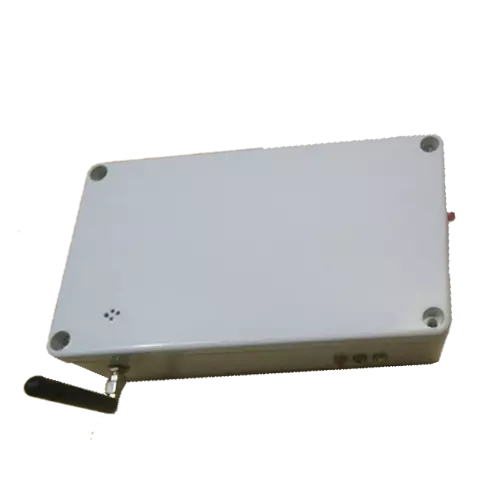

LoRa Gateway

• Compliance to LoRaWAN 1.0.2, Class A/C
• Support of Frequency range from 862MHz to 928MHz
• Single-channel LoRa Gateway.
• It can bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G, or 4G cellular.
• Support of Open Source OpenWrt system
• Low power consumption
• Firmware upgrade via Web Software upgradable via network Auto-Provisioning
• Built-in web server Managed by Web GUI
• Processor: 400MHz, 24K MIPS
• WiFi: 802.11 b/g/n, 2.4 GHz, 1x1 SISO
• 10M/100M RJ45 Ports x 1
• USB 2.0 host connector x 1

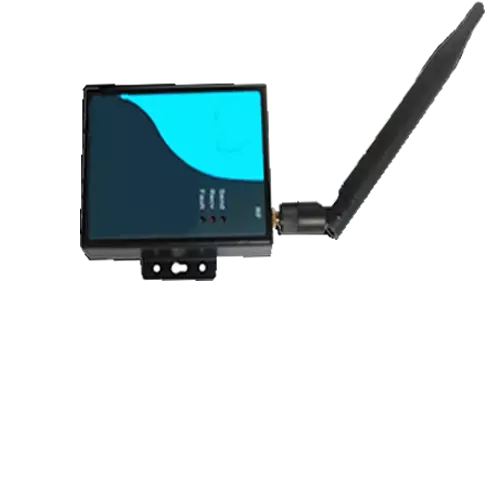

Zigbee Sensor Nodes

Zigbee Temperature & Humidity Sensors

• Humidity Operating Range: Humidity 0-100%RH
• Humidity Accuracy :Humidity +-2%RH(Max +-5%RH)
• Temperature Operating Range: Temperature -40~80°C
• Accuracy: Temperature <+-0.5°C
• Communication Channel: ZigBee with Mesh Network Topology

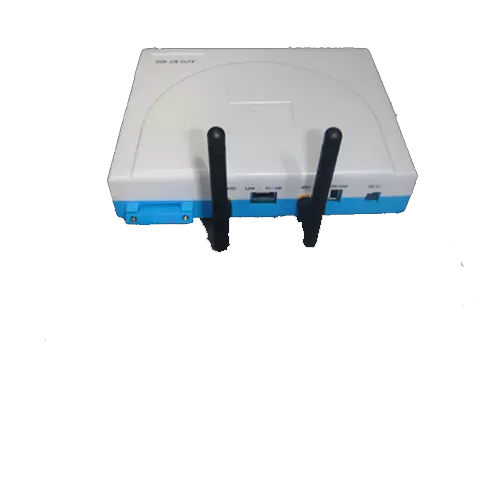

Zigbee Gateway

• Processor: ARM1176JZF-S 1 GHz
• Data Log capacity:10 a million Records
• Memory:512 MB
• Interface Ethernet, WiFi
• Storage :16 GB
• Max. Devices connected on Gateway: 100 Zigbee Sensor nodes

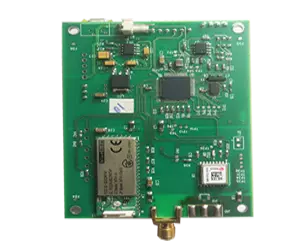

Wireless Sensor Networks (WSN)

• Wireless Connectivity solution for Monitoring, actuation, control, and alarm system.
• 900 MHz Frequency Hopping Spread Spectrum
• Supports Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Tree Routing Network Topologies
• up to 1W transmit power and RF Data Rate 500 kbps
• Bluetooth interface for configuration.
• Sensor and actuator Interfaces

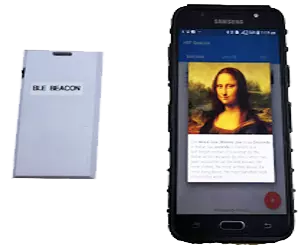

Bluetooth Beacon Device

• nRF51822 System on Chip (SoC).
• Bluetooth low energy compatible.
• 2.4 GHz compatible with nRF24L devices.
• Connection Type: Bluetooth.
• Hardware Description
• nRF51822 Bluetooth® Smart Beacon module
• Battery: Coin Cell battery

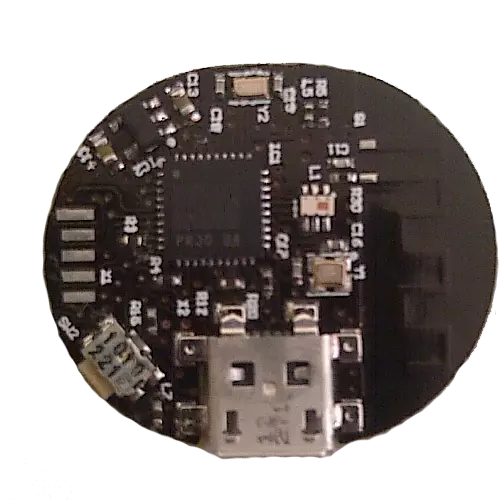

BLE Lock

• Uses Nordic BLE chipset for BLE Lock Implementation.
• support for up-to Two Micro Motors for vehicle lock applications.
• Low power design to support Long Lasting Battery for standalone BLE Lock mode.
• Battery monitoring and Alert.
• Android app allows instant and secure sharing and tracking technology.

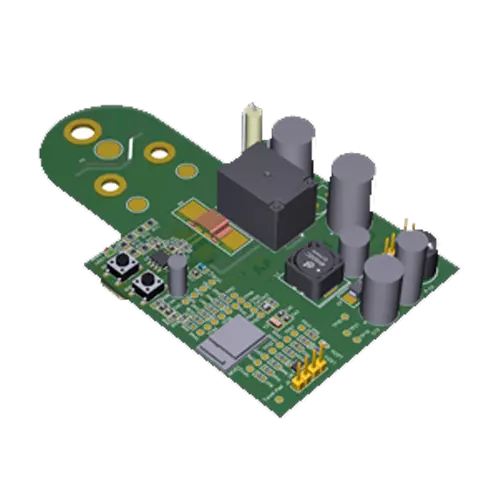

Bluetooth Smart Plug with energy meter

• With Bluetooth Smart Plug remotely turn Appliances on/off within Bluetooth connection range.
• Bluetooth Smart Plug with Energy meter functionality to track your energy usages.
• Automatically turn off the unattended power usage after you are away from the connection range for more than Specified time period.
• Suitable for home appliances with mechanical on/off switches, such as floor lamps, TV, fans, coffeemakers, cookers etc.
• Mobile applications supports up to 5 Bluetooth smart Plugs.
• Each Bluetooth smart plug can be paired with multiple smartphones.

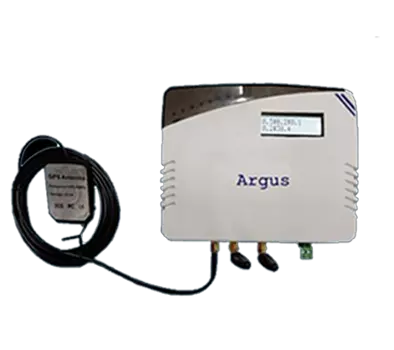

4G LTE Remote monitoring system

This product monitors voltage & current parameters of a DC power system (Remote control Rooms and site) as well as site location through discrete voltage/current monitoring Circuit. Monitored data is displayed locally on an LCD screen as well send to the cloud through 4G/LTE link.

• Voltage & Current Inputs from 4/8 DC power sources
• Data log in SD card
• LCD display for battery voltage and current parameters
• Power/Battery monitoring System for Remote Control rooms
