Networking Product design

Telecommunications Product design

Intelligent Gateway | Router | Access Point | Switch | Data Converter

Networking Telecommunications Product design & manufacturing

Argus Systems (AESPL) has built competencies in Networking product design and Telecomumications product design acquiring in-depth knowledge and expertise and has created intellectual property, re-usable platforms, and solutions. We have integrated hardware, software, and system design to provide our customers with valuable solutions in Networking and Telecom. Argus Systems believes in "First time Right solution" and with an experienced Product Engineering team, we can be your complete electronic product design and development partner.

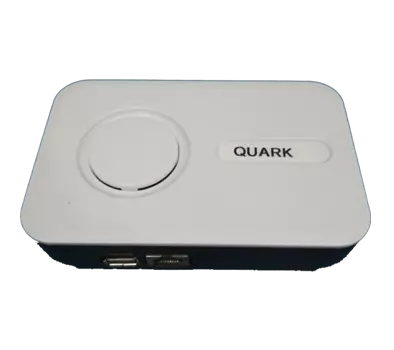

Wireless Access Point

  • A Portable access point can act as a Router or bridge as per the configuration done on the device.
  • supports storage devices to be connected to the Access point which gives it an additional benefit for the users to access all the files locally or remotely over LAN or WAN interfaces.
  • Wireless: 802.11 b/g/n, 2.4 GHz, 1x1 SISO, 150MBps max data
  • Built-in chip antenna as well external antenna option
  • 2X Ethernet
  • 400MHz CPU for low power
  • Onboard FLASH, RAMs
  • USB and MicroSD Storage.
  • Inbuilt rechargeable battery for portable access point requirements
  • Access Point supports router and bridge modes
  • Globally Accessible, Locally controlled data Storage
Wireless Access Point

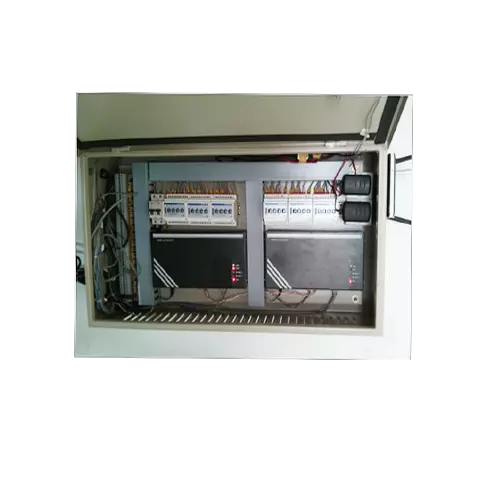

Ethernet Router, Ethernet Gateway

  • Ethernet Management Gateway (EMG) is an embedded Ethernet Router, Ethernet gateway device that connects various Peripherals to a centralized server running management application software.
  • Processor 32-bit RISC running low power, cache, on-chip memory
  • On-chip Peripheral: Ethernet, 3 UARTs, LCD, 10 bit A/D converter, USB, GPIOs,
  • DRAM – 64MB
  • Flash – 8MB
  • Display - 7” touch screen LCD
  • Network Interface Ports - Ethernet
  • Wireless Network Interface : WiFi, 4G/LTE
  • Serial Interface Ports - EthernetRS-485 RS-232
  • Digital Outputs :8/16
  • Digital Inputs: 8/16,
  • Analog I/O: Analog Inputs – 4, 4-20mA current input
Wireless Access Point

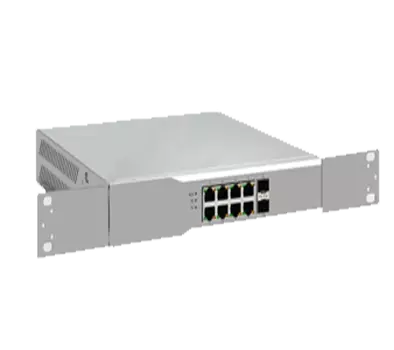

Ethernet Switch

This Web Smart Ethernet Switches unify plug-and-play simplicity with incomparable performance and reliability to create a cost-effective solution for workgroups, departments, and Home.

Its IEEE 803.3af capable 4 POE ports are capable of providing power and data from a single point, which makes users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APS), IP phones, and IP cameras. Enhanced features of the product include 2 Gigabit SFP combo ports, QoS, and versatile management functions.

  • 4 10/100 BASE-T Auto-negotiating, Auto MDI/MDI-X ports with 802.3 Flow Control.
  • 4 10/100 BASE-T POE enabled Auto-negotiating, Auto MDI/MDI-X ports, 802.3 Flow Control with 802.3af Power over Ethernet.
  • 2 (SFP) can be used as Gigabit Fiber optic/ Copper Port
  • Per device: Power/PWR Error Port LED, Mode Indicator: Link/Act Mode
  • Per 10/100 BASE-T port: Link/Act
  • Per SFP slot: Link/Act/error, 1000Mbps
Managed Ethernet Switch

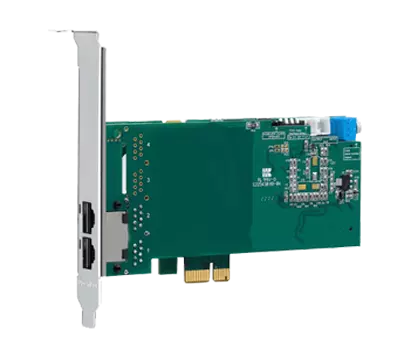

Dual Port PRI Card

PCI & PCIe Based Dual Port PRI card designed as off the shelf hardware.

  • ITU-T I.431 ISDN support in TE and NT mode.
  • EURO ISDN compliant.
  • HDLC controller with support for 31 E1-channels.
  • Transparent mode and data rate independently selectable for all FIFOs.
  • Up to 32 FIFOs for transmitting and receive data each, FIFO sizes configurable.
  • Multiparty audio conferences were switchable.
  • DTMF Detection on all 32 channels.
  • Self echo cancellation.
  • MISDN support also makes it an ideal choice for OpenPBX IP-PBX.
Dual Port E1 PRI Card

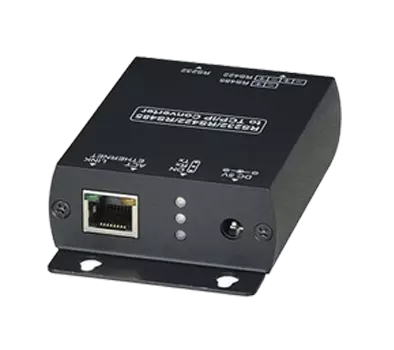

Ethernet Data Converter

Any device with a standard serial interface can connect to Ethernet with embedded devices servers in a snap. Ethernet Data converter provide a 10/100 Mbps Ethernet interface with ready-to-use operation modes such as TCP Server, TCP Client, and UDP.

  • 10/100 Mbps Ethernet interface
  • 230.4 Kbps serial interface
  • TCP Server, TCP client, UDP, and Real COM operation modes
  • Support for DHCP, BootP, Static IP, and ARP
  • SNMP and e-mail alert for event trapping and notification
  • Low power consumption at 1.5W, with single +5V input
  • Easy on-site configuration of network settings
  • Simple command frame format
  • Comprehensive command set for serial and network configuration
  • Easily switch between software and hardware triggers
  • Protocols: ICMP, ARP, IP, TCP, UDP, DHCP, Telnet, HTTP, SNMP, SMTP Utilities: Network Enabler Administration Suite for Windows 98/NT/2000/XP/2003/Vista
  • OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux Real TTY, Unix
  • Configuration: Web console, serial console, Telnet console, or Windows utility
  • Operation Modes: TCP Server, TCP Client, UDP, Real COM
Serial to Ethernet Converter

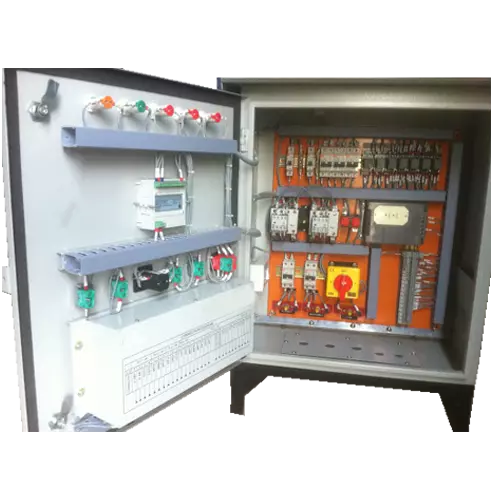

Telecom Tower Monitoring System

Argus Systems as an OEM has designed and developed solutions for the Telecom tower monitoring system. Our solutions integrate various sensors, the gateway to be used for remote monitoring and control with inbuilt data analytics for telecom and cell phone towers.
Our telecom/cell tower monitoring solution can empower you to monitor assets, manage security, detect fuel leakages, track fuel efficiency and observe any environmental conditions in real-time as well as alarm based threshold detection will generate for any errors.
Our solutions can be integrated with AI and ML to enable predictive maintenance instead of scheduled maintenance and lead in overall cost reduction of the assets.

  • Door Alarm
  • Fire and Smoke Alarm
  • Temperature
  • Fuel level threshold alarm
  • DG set on/off/battery low
  • Mains power on/off
  • Low battery
Telecom Tower Monitoring System
Custom Networking & telecommunications Products design and Manufacturing

Contact Argus to discuss your custom Networking product design and telecommunication products design & manufacturing of wireless access Point, Ethernet Router, Ethernet switch, Ethernet Gateway, PRI Card.

Argus Systems ( AESPL ) is a globally recognized Electronic System Design and Electronic manufacturing company with Its Operations in India, USA, UK offering Networking product design and Telecommunications product design such as Gateway, Router, Wireless Access Point, Managed Ethernet Switch, PRI cards, ethernet data converter, Serial Data Converter ( RS232, RS422, RS485, USB ) and Telecom Tower Monitoring System.
