Audio product design
Audio electronics design, software and Manufacturing
Audio Product design (electronics hardware , software) and Manufacturing
Argus (AESPL) has built competencies in Audio
electronics Product domains acquiring in-depth knowledge and expertise, creating
intellectual property and re-usable platforms Helping brands bring their new audio
products to market quickly . We have integrated the hardware, software, and
system design services to provide our customers with valuable Audio products and solutions. Argus
Systems believes in "First time, Right solution" and with experienced technical resources,
we can be your complete electronic product design partner. From pro audio applications
with the highest levels of fidelity and lowest latency to consumer Audio product design,
we do it all.

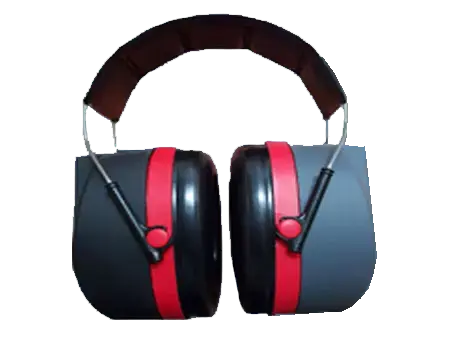

ANC Earmuffs
- Active Noise Reduction (ANR) headphone system reduces annoying low-frequency sound in a noisy environment.
- The chip measure external ambient noise using ANC circuitry with its built-in microphone and synthesizer with a sound in the opposite phase to reduce significant background noise.
- Earcup pivot points that tilt for optimum comfort and efficiency.
- Lightweight adjustable headband provides superior fit Full-size ear cups.
- Active Noise cancelling earmuffs has 20Hz to 600Hz Noise Reduction Bandwidth.
- Decibel Reduction: 15-20dB active noise attenuation at 100 to 400Hz (tonal noise).
- Compatibility: 300-ohm impedance audio system.
- Weight: Adds approximately 3 ounces to original headset weight.
- Power input: 9Volt DC power supply, +/- 5%.
- Power consumption: 500 mA (max.).
- Temperature: -20 degree C to +70 degree C.

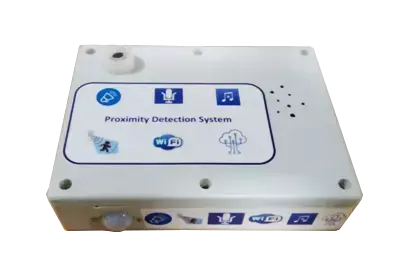

WiFi Voice Recorder and Audio Player
WiFi voice recorder and audio player automatically Records the voice once human Proximity is detected and plays alert/welcome messages. Recorded audio is pushed to cloud for data analytics.
Customised welcome messages can be either downloaded from server or can be recorded on device itself. Device is connected the cloud with a Wi-Fi and can be configured and managed through mobile apps and server.
- Microphone with preamplifier and automatic gain control.
- Low noise high quality Audio Play.
- Audio Record Modes: PIR based record mode &manual record mode.
- Playback Modes: Onetime play mode, continuous play mode, PIR based Play mode.
- 8GB SD Card.

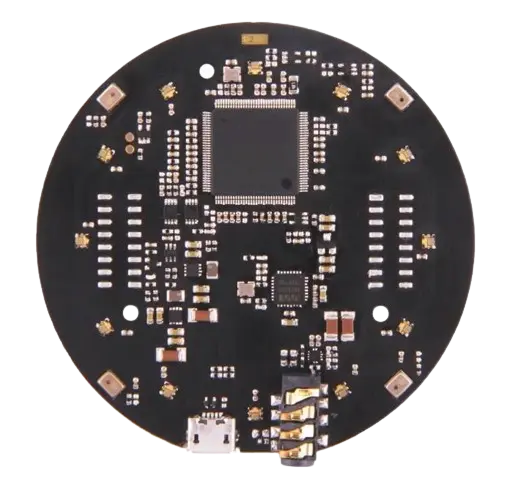

Microphone Array Board
Microphone Array Board is a far-field 6 microphone array device designed for AI and voice applications that can capture sound from a wider area, reduce background noise and reverberation.
This Allows for to build a more powerful and flexible voice product which can integrate Amazon Alexa Voice Service, Google Assistant, and so on. 6 mic Array Audio and Voice Board supports 8 input & 8 output channels in Raspbian system.
- 8 input and 8 output channels
- 2 x X-Power AC108 ADC
- 6 x high performance microphones
- 1 x X-Power AC101 DAC
- PAM8403 – 3W class-D audio amplifier
- Voice output: 3.5mm headset audio jack
- Microphones: SPU0414HR5H-SB-7
- Sensitivity: -22 dBFS (Omnidirectional)
- SNR: 59 dB
- Max Sample Rate: 48Khz

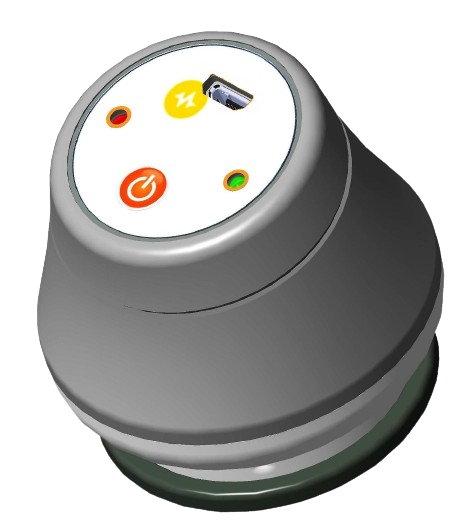

Bluetooth Audio Recorder
- Microphone for audio Recording.
- MP3/AAC/WMA/MIDI audio Codec.
- BLE 5.0.
- Records Audio and stream to mobile through Bluetooth.
- Recorded Voice is stored to SD Card.
- Stored Audio can be uploaded to server for data analytics.
- Bluetooth Audio Recorder is Li-Ion Battery powered Device with charging Circuit.
Argus Systems (AESPL) is a globally recognized Electronic System Design and Electronic manufacturing company with Its Operations in India, USA, UK offering Audio electronics product such as ANC headphone, WiFi Voice Recorder, microphone Array Board, Bluetooth Audio Recorder, Audio Player, Audio Board, Voice Board.
