MCPCB (Metal Core PCB, Metal Clad PCB)

IMS PCB (Insulated Metal Substrate PCB)

Ceramic PCB, Aluminium clad PCB , Copper clad PCB

MCPCB, IMS PCB, Ceramic PCB

Argus Systems (AESPL) is a leading PCB manufacturer Providing high quality Metal Core PCB (MCPCB), Insulated metal Substrate PCB (IMS PCB) solutions for improved PCB Thermal management Aerospace & Defense (AS9100D,MIL-PRF,LCSO),Medical (ISO 13485),Automotive (IATF 16949 )and industrial applications.

As a result of faster speeds, reduced format, and more devices being populated on Printed Circuit Boards, more heat is being generated that must be removed for efficient operation. Thermal management through Insulated Metal Substrate (IMS) PCB aids in directing heat away from heat-generating system components.

Our Overall PCB Fabrication capabilities support high-frequency PCB, High-temperature Boards, Thick PCB, ultra-thin PCB, heavy copper PCB, Metal Clad PCB, HDI boards with Blind Vias, Buried Vias, Micro Vias, Via on pad, stacked micro-Via, Embedded passives, bonded heat sink, Impedance Control, Depth control drilling, Back drilling, Edge Plated PCB, Bump Pads and cavity with ledge.



Aluminium core PCB fabrication capabilities

  • Material: Ventec Bergquist
  • Max Panel size: 18” x 24”
  • Min dielectric layer thickness: 75um
  • Max Copper thickness: 3oz
  • V-cut: Yes
  • Routing: Yes
  • Solder mask: Green, white, black.

Copper Core PCB manufacturing capabilities

  • Material: Ventec Bergquist
  • Max Panel size: 16” x 21”
  • Min dielectric layer thickness: 75um
  • Max Copper thickness: 3oz
  • V-cut: Yes
  • Routing: Yes
  • Solder mask: Green, white, black

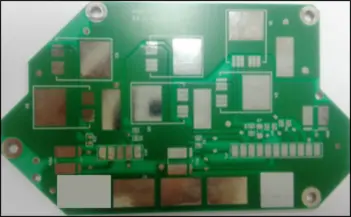

Aluminum Core PCB (MCPCB)

  • Metal Core Type: 5052 Al
  • Dielectric thickness: 100um
  • Copper Thickness: 3 OZ
  • Al thickness: 1.9mm
  • Surface finish: LF-HASL
Aluminum-Core-PCB-(MCPCB)

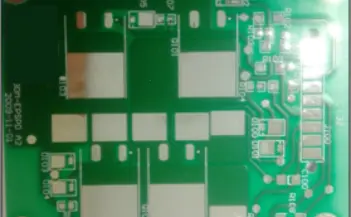

Aluminum Clad PCB (MCPCB)

  • Metal Core Type: 5052 Al
  • Dielectric thickness: 75um
  • Copper thickness: 2 OZ
  • Al thickness: 1.9mm
  • Surface finish: LF-HASL
Aluminum-Clad-PCB-(MCPCB)

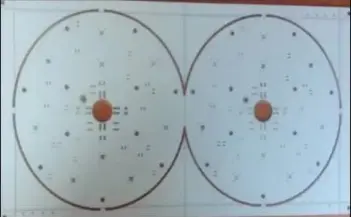

Aluminium IMS PCB

  • Metal Core Type: 5052 Al
  • Dielectric thickness: 75um
  • Copper Thickness: 3 OZ
  • Al thickness: 1.0 mm
  • Surface finish: LF-HASL
Aluminium-IMS-PCB

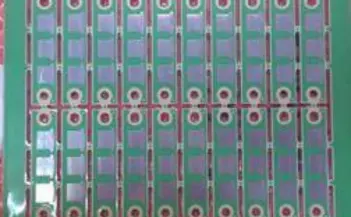

Insulated metal Substrate PCB

  • Metal Core Type: 5052 Al
  • Dielectric thickness: 100um
  • Copper Thickness: 3 OZ
  • Al thickness: 1.0 mm
  • Surface finish: LF-HASL
Insulated-metal-Substrate-PCB

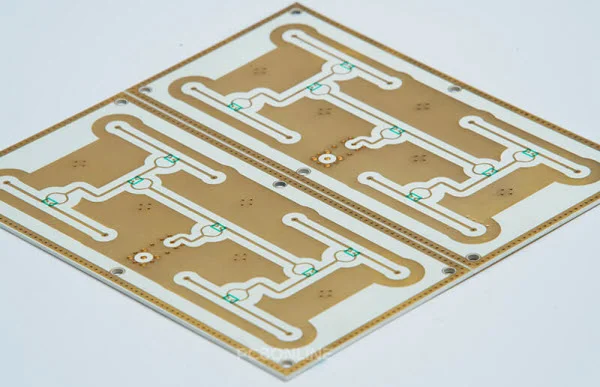

Ceramic PCB

  • ceramic PCB manufacturing with ceramic material like Aluminum Nitride, Aluminum Oxide, Boron Nitride, Beryllium Oxide, and Silicon Carbide.
  • Ceramic PCBs with higher thermal conductivity and a low expansion coefficient (CTE).
  • High temperature resistance and high electrical insulation performance
  • Good mechanical strength and can withstand high load including shock and vibration
  • Good chemical stability and Low Frequency loss
  • High-impedance tracing can be implemented easily
  • Less expensive than metal (Cu/ Al) core PCBs
Insulated-metal-Substrate-PCB

Metal Core PCB (MCPCB), Insulated Metal Substrate PCB (IMS PCB), metal Clad PCB, ceramic PCB

Contact Argus PCB Manufacturing team for Your Metal Core PCB (MCPCB), Insulated Metal Substrate PCB (IMS PCB), Metal clad PCB, Ceramic PCB fabrication and pcb assembly requirements.

Argus Systems (AESPL) a globally recognized PCB Design , PCB fabrication , and PCB assembly company supporting Fabrication of Metal Core PCB (MCPCB), Insulated Metal Substrate PCB (IMS PCB), Metal Clad PCB, Ceramic PCB for Its Global Clients in India, USA and UK as per Automotive (IATF 16949), Medical Devices (ISO 13485), Aerospace and Defense (AS9100D, MIL-PRF, LCSO) quality management standards.
